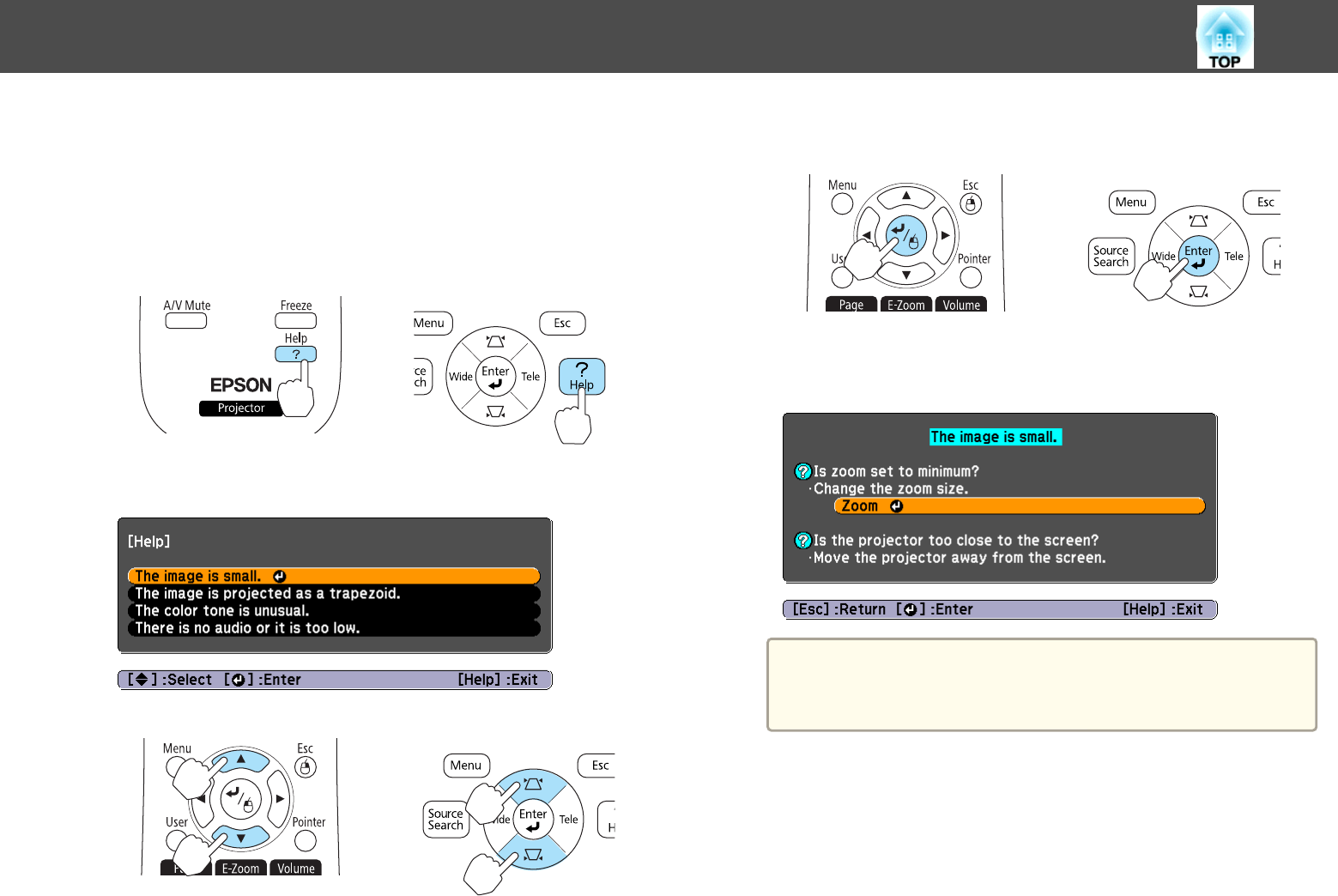

If a problem occurs with the projector, the Help screen is displayed to assist

you by pressing the Help button. You can solve problems by answering the

questions.

Press the [Help] button.

The Help screen is displayed.

Using Remote Control Using the Control Panel

Select a menu item.

Using Remote Control Using the Control Panel

Confirm the selection.

Using Remote Control Using the Control Panel

Questions and solutions are displayed as shown on the screen below.

Press the [Help] button to exit the Help.

See the following if the Help function does not provide a

solution to the problem.

"Problem Solving" p.79

Using the Help
