Once you have the connector pins sitting in the

connector slot, push down firmly (but carefully) to

fully insert the card. If you feel that the connector

isn’t going in smoothly do not force it; pull it all

the way out and try again. Be sure to keep it

straight.

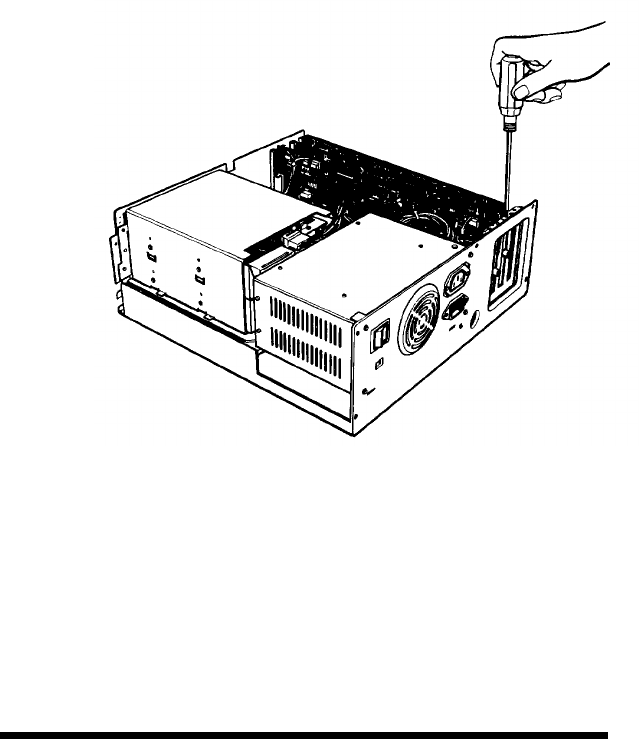

With the card properly inserted, secure the

retaining bracket to the frame of the computer

with the small screw.

5-6

Installing Option Cards
